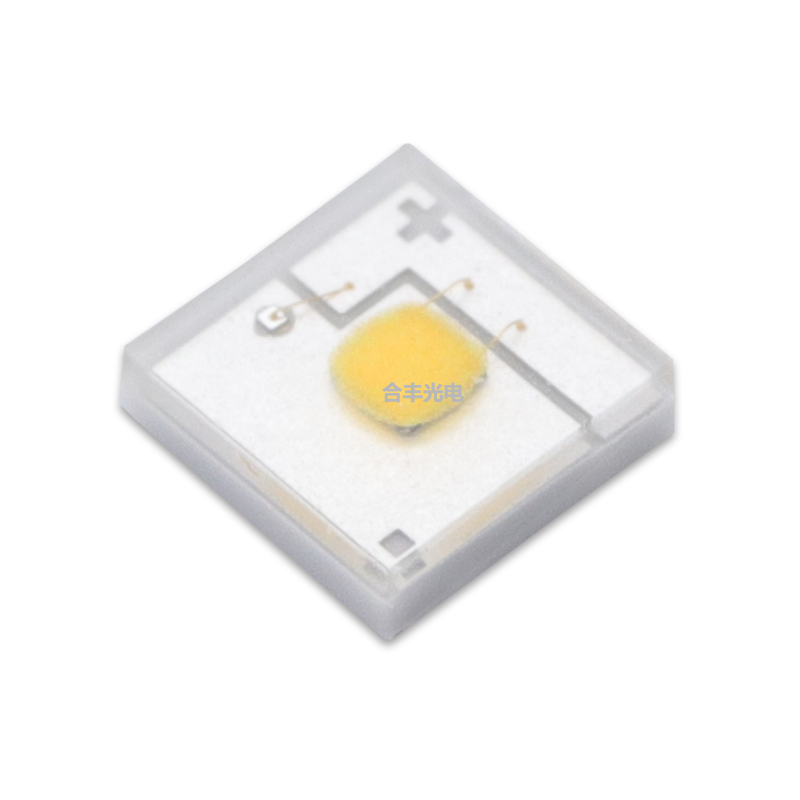

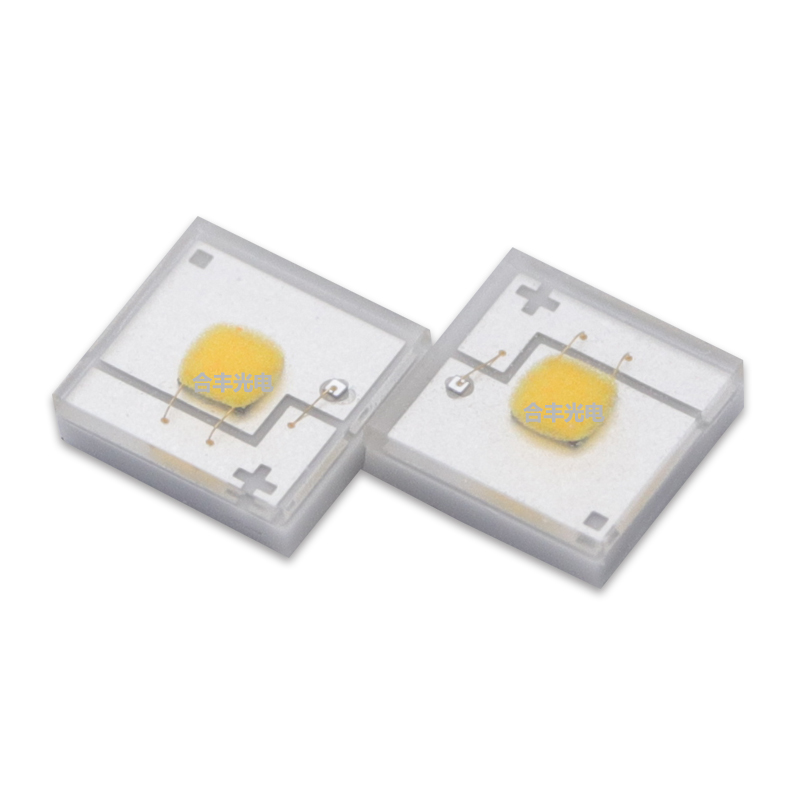

SMD3535 1/3W PlaneWarmWhiteHighPower LED
Features:
99.99% gold wire bonding, 1.2mil
Ceramic substrate
Applications: Flashlight, downlights and other commercial lighting
Beam Angle: 60 degrees and 120 degrees, 180 degree - Flat lens (without dome lens) are available.

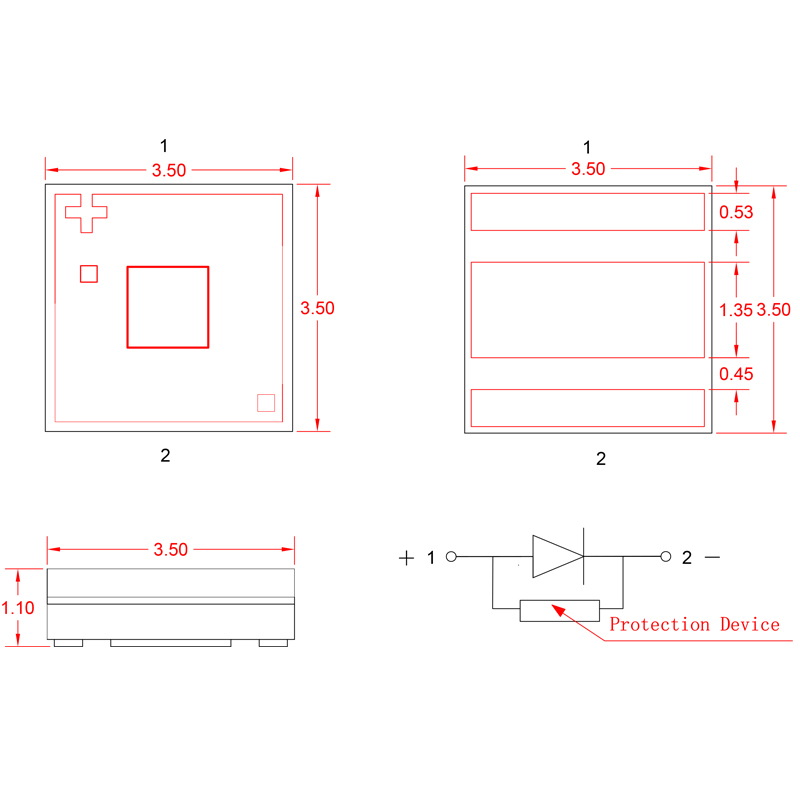

Packaging Type: SMD3535
Available Color Temperature: 2800K-3200K, 4000K-5000K, 5000-6000K, 6000K-7000K, 8000K, 10000K, 12000K, 14000K, 15000K, 16000K, 18000K, 20000K, 25000K
White LED Spectrum is available for common white, high CRI white; sunlight full spectrum and high CRI sunlight full spectrum.
service to meet diverse customization needs. If you require any support, please contact us.
| Order Codes | HF3535Y***-3W-*28k70**-08**J9 |
| CCT | 2800/3200K |
| Watt | 1-3W |
| Ra | 80/90/97 |
| Vf (V) | 3.0-3.4/3.2-3.6 |
| If (mA) | 700 |
| If-Max (mA) | 1000 |
| Viewing Angle (°） | 60/120 |
| Qty./Roll（pcs） | 1000 |
