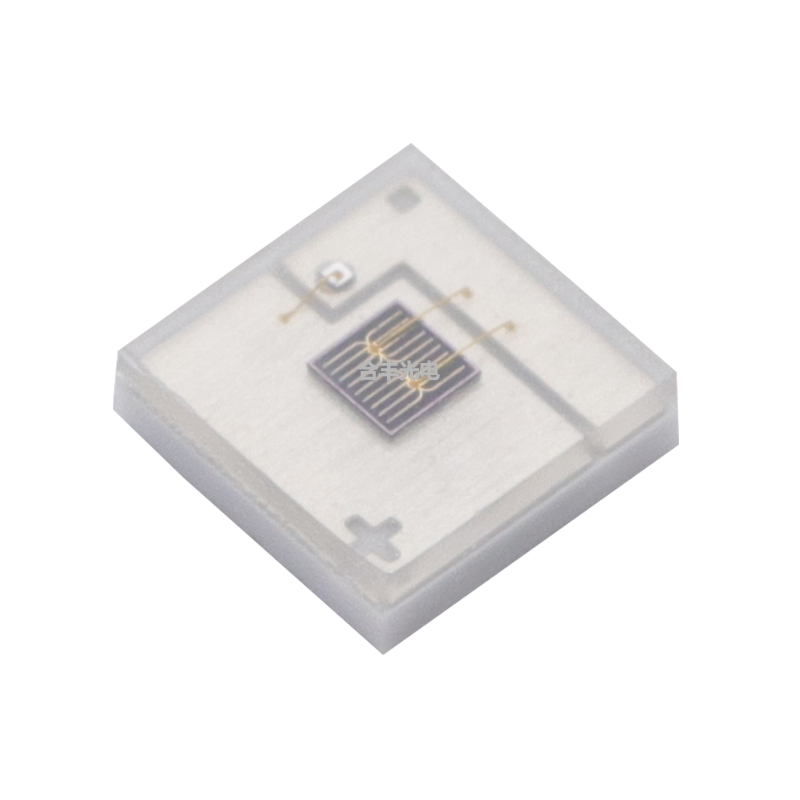

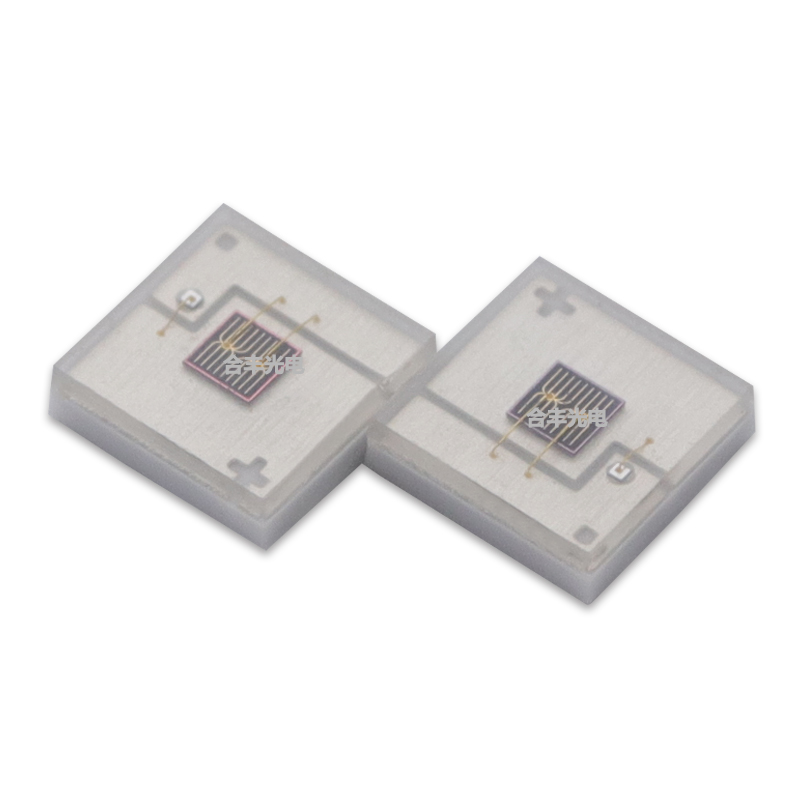

PlaneSMD800nm 1/3W3535 Infrared High Power LED
Features:
This high-power SMD3535 Infrared High Power LED light is made with premium chips, 99.99% gold wire bonding, copper bracket vertical packaging, and a ceramic substrate. It complies with CE and ROHS standards.
Applications: Medical Instrument, Aquarium lighting, horticultural lighting and other professional or commercial lighting.
Beam Angles: Available in 60 degrees, 120 degrees, and 180 degrees - with flat lenses (without spherical lenses).
Custom Solutions: We have a professional team, customized production capabilities, and offer high-quality service to meet diverse customization needs. If you require any support, please contact us.
| Order Codes | HF3535Y***-3W-*800nm**-08**J9 |
| Wd. | 800/805nm |
| Watt | 1/3W |
| Flux | 500-600mW |
| Vf (V) | 1.6/2.0V |
| If (mA) | 350/700 |
| If-Max (mA) | 1000 |
| Viewing Angle (°） | 60/120 |
| Qty./Roll（pcs） | 1000 |
