UV 3535 390nm 1W 3W Planeviolet lightHigh Power LED
Features:

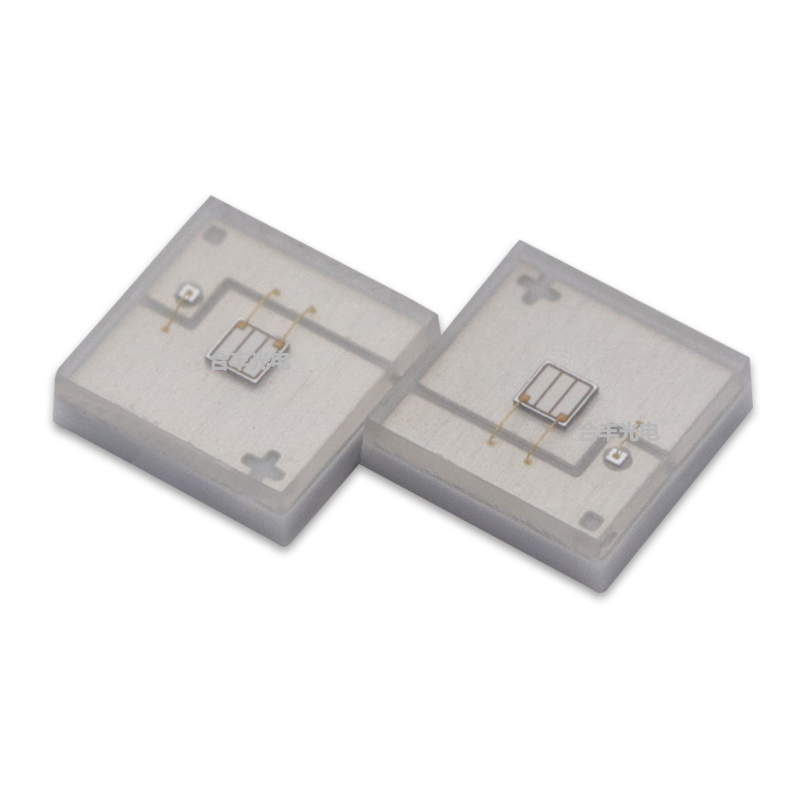

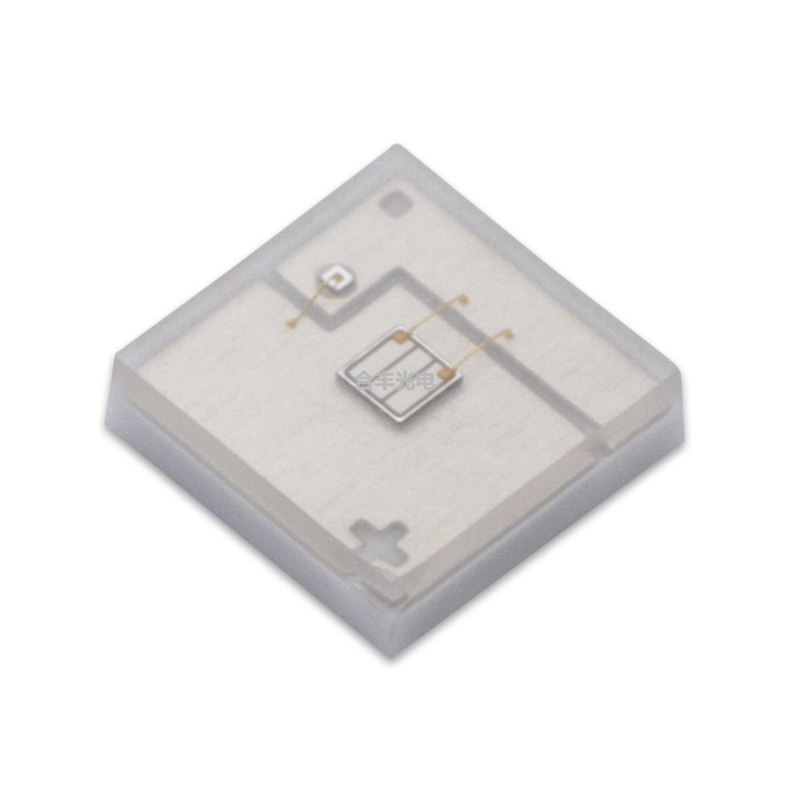

This high-power SMD3535 CyanHigh Power LED light is made with premium chips, 99.99% gold wire bonding, copper bracket vertical packaging, and a ceramic substrate. It complies with CE and ROHS standards.
Applications: Medical Instrument, Aquarium lighting, horticultural lighting and other professional or commercial lighting.
Beam Angles: Available in 60 degrees, 120 degrees, and 180 degrees - with flat lenses (without spherical lenses).
Custom Solutions: We have a professional team, customized production capabilities, and offer high-quality service to meet diverse customization needs. If you require any support, please contact us.
| Order Codes | HF3535Y***-3W-*390nm**-08**J9 |
| Wd. | 390/395nm |
| Watt | 1/3W |
| Flux | 1200-1400mW |
| Vf (V) | 3.4/3.6V |
| If (mA) | 350/700 |
| If-Max (mA) | 1000 |
| Viewing Angle (°） | 60/120 |
| Qty./Roll（pcs） | 1000 |
